SPECIFICATIONS







Category: Projectors

Keystone Correction: Manual Correction

Keystone Correction: Auto Correction

Hign-concerned Chemical: None



Projected Dimension: 30-150inch

Light Source: LED

Weight: 3.2kg

Built-in Speaker: YES

Portable: No

Battery: no

Contrast Ratio: 10,001:1-20,000:1

Bluetooth-compatible: YES

Ansi Lumens: 700 ANSI Lumen

Home Theater Projector: yes

Optical Resolution: 1920x1080dpi

Certification: CE

Certification: FCC

Certification: RoHS

Use: Home

Remote controller included: YES

Type: Digital Projector

Screen Scale: 4:3/16:9

Input/Output: 3.5mm Earphone Out

Input/Output: HDMI

Input/Output: USB

Power: 90W

Projection Technology: LCD

System: Multimedia System

Projective Mode: Throwing

Projective Mode: Ceiling

Projective Mode: Back Projection

Projective Mode: Mirror Image

Native Resolution: 1920x1080Pixels

Throw Ratio: 1.4:1

Lens: Coated Optical Lens

Lamp Life: > 10 Years

Full-Sealed Optical Engine: Yes

Auto Focus: Yes

Auto Keystone Correction: ±45°

Zoom: 50%-100%

Speaker DSP: 2x5W

Remote Control: 360 All-round Remote Control

Connection: USB 2.0 x 2/HDx1/AVx1/DCx1/Audio x1/WiFi/Bluetooth

Dimensions: 26.5x26.5x10.5 cm(10.4x10.4x4.1 in)

Net Weight: 2.47 kg/ 5 lbs

Packaging Dimensions: 38.5x31.5x14.5 cm (15.2x12.4x5.7 in)

Total Weight: 2.9 kg/6 Ibs



Specification:

• Real Native Resolution: 1920*1080P Full HD

• Max Resolution: from HD Signal Support 2K 4K UHD

• Brightness: 21000 Lumens , 700 ANSI Lumen

• New Tech Full enclosed optical LED machine, reducing noise and no dust entering

• Lens: Auto focus and Auto KeystoneAuto

• Keystone : +/- 50 degrees

• Zoom : form 50-100%

• Contrast Ratio: 15000:1

• WiFi :5G+2.4G Dual WiFi

• Working Voltage:AC100-240V / 50-60Hz

4K Decoding HDR10 & Stunning Brightness Uniformity:

The Apollo P40 projector utilizes premium LCD panels and optimized optical design to deliver 80% brightness uniformity that maintains stunning images and accurate color throughout the lifespan. 4K decoding and HDR10 enhance more detailed shadows even in the dark. Bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks. Blurred edges never bother you, the details in each corner are optimized.

700 ANSI Lumens & ULTIMEA OS:

The upgraded LTPS LCD technology improves light transmittance by 15%, and the advanced LED light sources boast up to 700 ANSI lumens with low heat, concentrating energy to achieve a leap in brightness. Adapting to ambient light, even the vast starry sky and backlit scenery can be clearly rendered without drawing the curtains during the day, all on the 150" screen. With the brand new ULTIMEA OS, you won't have to spend extra time researching operations.

2024 Upgraded USPAA Technology:

The Apollo P40 projector applies self-developed ULTIMEA USPAA algorithm for enhanced clarity and optimized 6D auto keystone correction (±50° horizontal/vertical/rotating). Equipped with intelligent obstacle avoidance and automatic screen alignment, it effortlessly blends into any environment. Only takes 2 steps to achieve these intelligence functions (Turn on the corresponding setting and click autofocus button on the remote control.)

Intelligent obstacle avoidance

The Apollo P40 uses the latest chipset and CMOS camera for accurate obstacle detection in seconds to ensure effortless setup and a cinematic experience without manual adjustments.

Intelligent screen alignment

The Apollo P40 seamlessly auto-aligns the image to the screen in seconds, allowing you to create a private movie experience in every corner of your home.

Intelligent Autofocus

The built-in sensor detects the focus of the image in real time to achieve the best clarity and automatically adjusts the image sharpness within 3S.

Get a Square image in Seconds

6D ±50 degree automatic keystone correction (horizontal/vertical/rotating). Instant clarity and perfect fit of your screen.

5.8GHz + 2.4GHz Dual WiFi & Bidirectional Bluetooth:

The Ultimea projector features an enhanced wifi antenna and chipset for stable connection and low input latency. Built-in bidirectional Bluetooth 5.1 for easy syncing to ULTIMEA soundbars or Bluetooth speakers. Additionally, the Bluetooth projector can turn into an ingenious private Bluetooth speaker. 10W large audio cavity speakers with built-in DSP chip to reproduce clear treble and deep bass.

Lightning fast Bluetooth

The built-in Bluetooth 5.1 allows easy synchronization with ULTIMEA soundbars, Bluetooth speakers or smartphones. The projector wifi can also be used as a private speaker.

Dustproof Design & Versatile Connections:

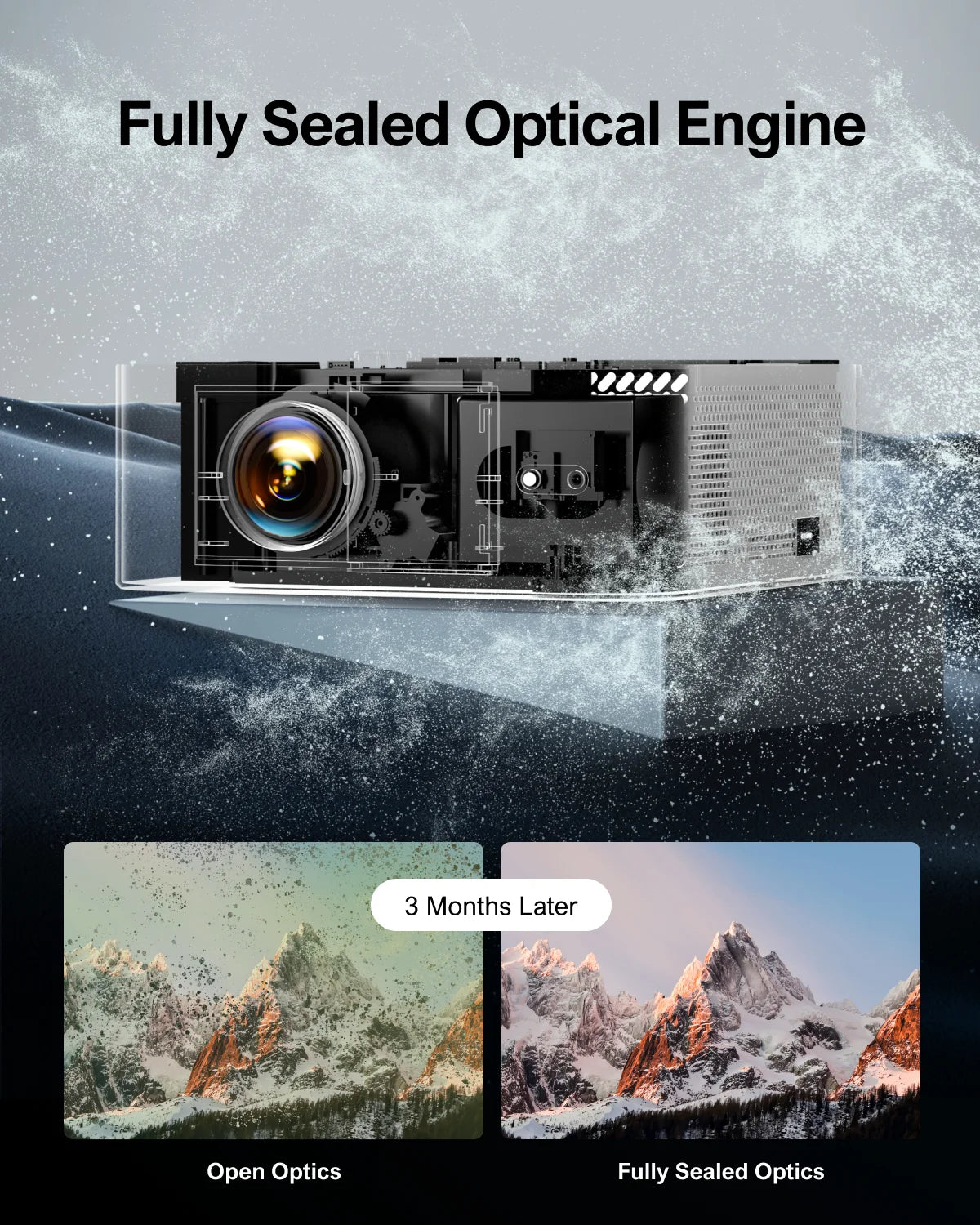

The fully enclosed optical engine design effectively prevents dust from entering, ensures low light wane, and extends lifespan. You would never get into trouble with the issue of blurred or yellowish pictures after long-time use. Its gunmetal grey design luxuriously and seamlessly blends into your home's décor. Equipped with HDMI, USB, AV, and audio ports, it's easily compatible with smartphones, TV Sticks, Roku, Switch, laptops, and more.

Quiet and Immersive Dual high-speed air duct cooling system, the noise is as low as 25dB. Experience a quieter and more immersive movie night.	All Around Control Experience an intelligent and efficient remote control with the ability to transmit signals seamlessly, regardless of angles and obstacles.	Zoom from 100% to 50% Easily adjust the screen size from 100% to 50% without moving the projector back and forth. Perfect for small room and bedroom.

Recommend Projection Distance and Size

This 2K 4K projector support projection distance from 1.5 to 8 meters to achieve a 50 to 300 inch projection size .We suggest 2.5-3.4 m projection distance,80 -100 inch projection screen and ambient darkness, which is the best eye-protection and enjoy distance.

2 steps to achieve screen mirroring

Simply transfer content from your iOS/Android. Make sure the beamer and the phone are connected to the same Wi-Fi network.

1. select the "Wi-Fi" settings to connect to the home Wi-Fi and click on "Airplay/Miracast"

2. select "Screen mirroring" on your phone and click on "U0320-XXXX" to establish a connection.

Make Ultimea Your Lifestyle:

Enjoy movie nights, yoga relaxation, or business presentation. Equipped with HDMI/USB*2/AV/Audio ports, for easily connecting to your iOS or Android phones, TV Sticks, Switch, Laptops.

FAQ:

Q: What is the difference between ANSI lumens, lumens and lux?

A: ANSI lumens: Standardized measurement of the brightness of a projector.

Lumen: The total amount of visible light emitted from a source.

Lux: Intensity of light on a given surface, measured in lumens per square meter.

Q: How to activate "Smart Obstacle Avoidance" or "Smart Screen Alignment"?

A: 1. please select the "Projection" setting

     2. turn on "Intelligent Obstacle Avoidance" or "Intelligent Screen Alignment" and press the auto focus button on the remote control to perform these functions.

Q: How to measure the brightness uniformity of a projector?

A: ANSI defines nine points for measurement, essentially by placing a tic-tac-toe grid over the entire image and taking measurements at the center of each rectangle.

Q: What determines the brightness uniformity and color saturation of the projector?

A: The LCD panel, the light cones and the mirror determine the light transmission. The projector uses a 4-inch LCD panel and a direct light path design for high brightness uniformity.

Q: Does it support mirroring Netflix content from smartphones?

A: Due to HDCP copyright law, the projector does not support direct streaming of Netflix content from smartphones. Please use a TV stick, Chromecast or Roku to enjoy Netflix, Hulu or Amazon Prime Video.
